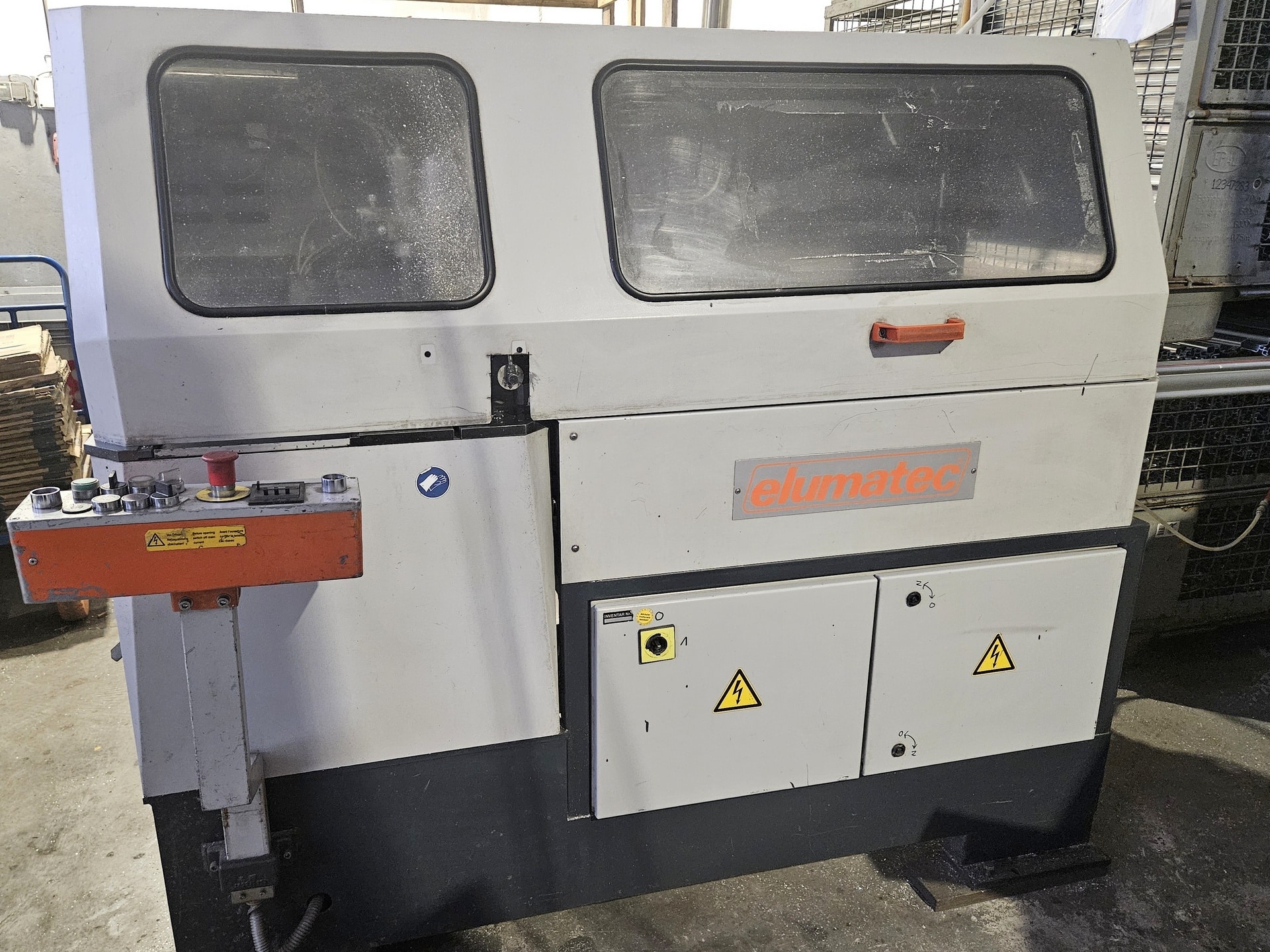

ELUMATEC SA 142/36 automatic circular sawing machine

ELUMATEC SA 142/36 automatic circular sawing machine produced in 2001 in Germany is designed for cutting aluminium and PVC joinery at a constant 90° angle. In the machining process, the machine uses a reliable circular saw with a diameter of 500 mm, which ensures incredible cutting quality while achieving short work cycles. The material is fed into the workspace on roller conveyors with the option of selecting single, double or triple feeding by means of a special switch. The installed horizontal cylinders further ensure that the process is carried out safely. Until now, the ELUMATEC aluminium sawing machine has only been used to cut aluminium profiles. The total weight of the machine is approximately 800 kg. Technical data of the ELUMATEC SA 142/36 aluminium profile sawing machine cutting angle: 90° cutting unit feed length: 650 mm feed length per work cycle (90° cut): 5-600 mm cutting disc diameter: 500 mm maximum cutting disc speed: 2800 rpm cutting unit feed adjustment: stepwise cutting length adjustment: manual intermediate angle adjustment: knob and display roller conveyors for material infeed material feed: pneumatic compressed air pressure: 7 bar air consumption (with spraying): 64 l/work cycle air consumption (without spraying): 50 l/work cycle power output: 4000 W power supply: 3x 400 V; 50 Hz dimensions (L x W x H): 2680 x 1335 x 1530 mm weight of machine: approx. 800 kg
