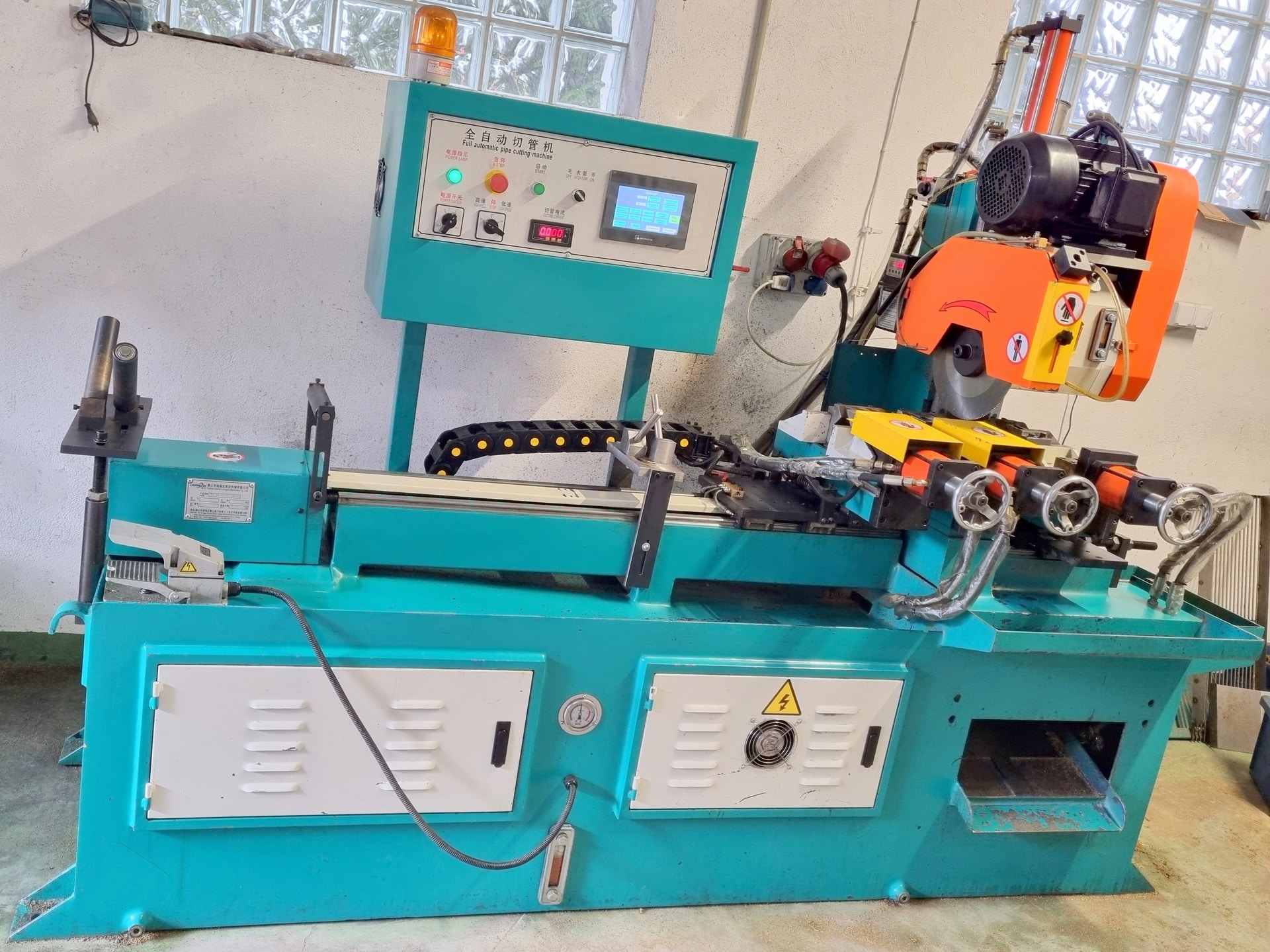

FOSHAN LX-425 metal circular sawing machine

FOSHAN LX-425 metal circular sawing machine was built in 2019 by the Chinese company Foshan Nanhai Longxin Machinery Co., Ltd. The machine designed for precision cutting of workpieces at a fixed angle of 90° performs the machining process (from loading to the workpiece cutting itself) fully automatically, thanks to the provision of a bar feeder with magazine. The machined workpieces have a smooth surface without any burrs or distortions. In addition, the ability to cut more than one piece of material (bundle) makes the FOSHAN sawing machine an excellent choice for mass production. To this date, the FOSHAN LX 425 circular sawing machine has cut bundles of 4 brass tube profiles into suitable lengths. Technical specifications of the FOSHAN LX-425 tube cutting machine cutting angle: 90° cutting disc diameter: 300 mm cutting disc bore: 32 mm cutting disc rotational speed: 42-88 rpm bar feeder with magazine hydraulic clamping vices with manual adjustment for changing the diameter of cutting material (bar holding vise, cut profile holding vise and post-cut holding vise) maximum vice spacing: 100 mm vertical cutting head with adjustable stroke depth stop control panel in Polish oil reduction gear cutting disc cooling system CE conformity certificate motor power: 3.5/4.2 kW motor speed: 1450/2860 rpm acoustic pressure level: 86 dB(A) power supply: 380 V; 50 Hz
