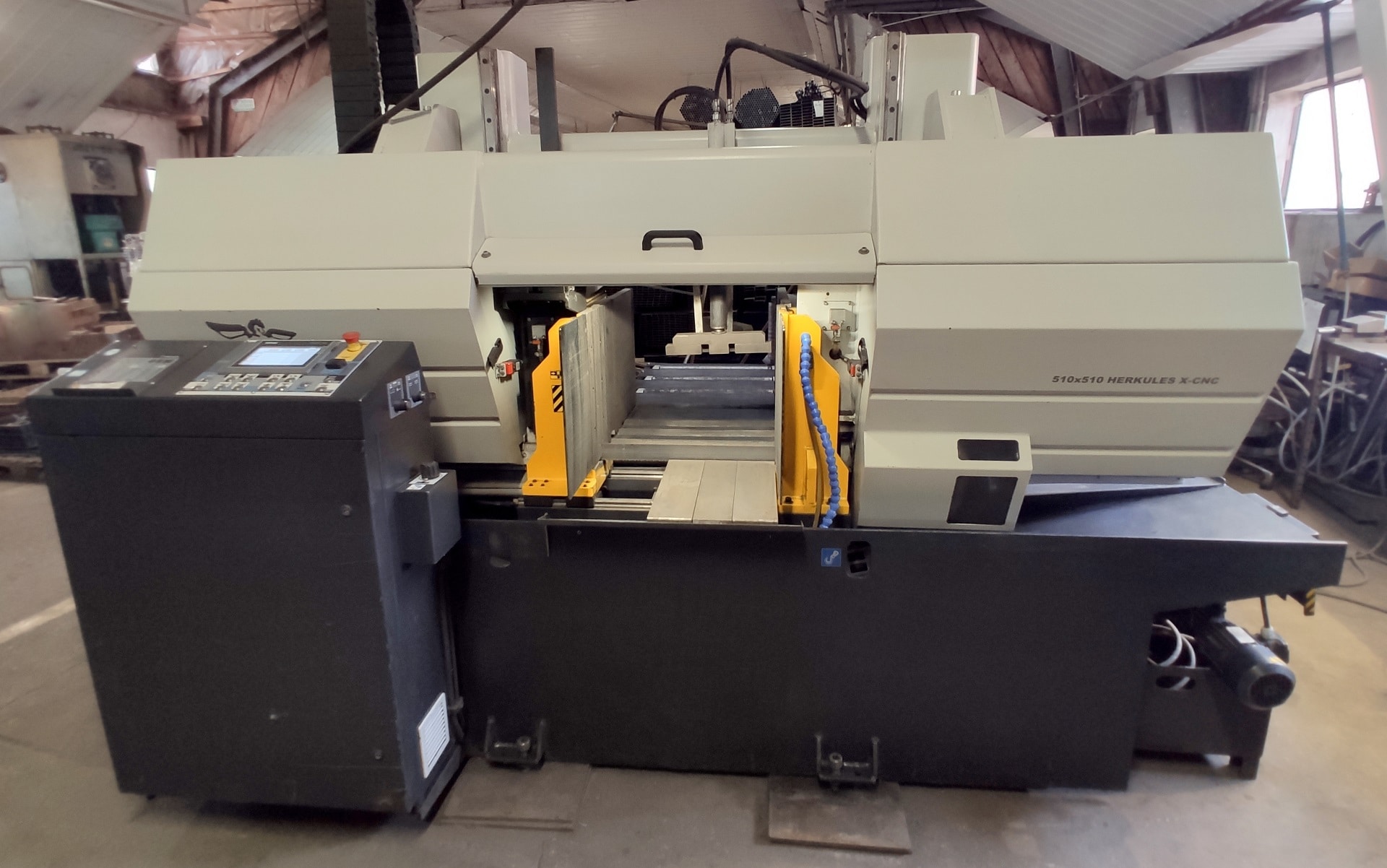

Gantry Bandsaw PEGAS 510×510 HERKULES X CNC

Gantry Bandsaw PEGAS 510×510 HERKULES X CNC was produced by the Czech company Pegas Gonda Ltd. in 2015. The machine has a saw with dimensions (L x W x H): 660 x 1.6 x 54 mm and blade speeds in the range of 15-80 m / min. The minimum diameter of the workpiece through the saw is 75 mm, and the maximum is 510 mm. The machine is equipped with PLC SIEMENS SIMATIC S7-1200 CNC numerical control. Additionally, the price of the machine includes 6 pieces of tape / blades. The total weight of the band saw is 6,220 kg. Technical data of the PEGAS 510×510 HERKULES X CNC band saw – CNC numerical control: PLC SIEMENS SIMATIC S7-1200 – blade speed: 15-80 m / min – band saw dimensions (L x W x H): 660 x 1.6 x 54 mm – arm inclination: 25 degrees – shortest cut-off length: 10 mm – smallest cutting diameter: 75 mm – maximum cutting diameter: 510 mm – maximum square cut (W x H): 510 x 510 mm – maximum rectangle cutting (H x W): 510 x 530 mm – the smallest material cut-off during a single cut: 3 mm – the largest material cut-off during a single cut: 670 mm – power supply: 3 N PE, 300V, 50Hz, TN-S – rated power: 19.1 kW – electric power: 3x 400 V – amperage at maximum load: 26.7 A – breaking capacity: 10 Ik – machine dimensions (L x W x H): 3360 x 2400 x 2100 mm – total weight: 6220 kg
