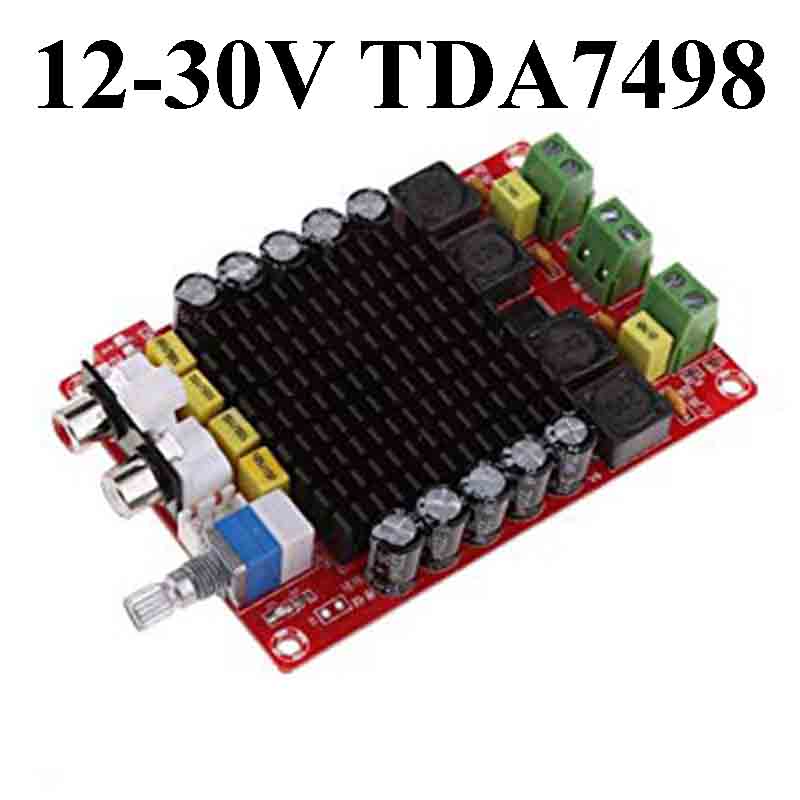

2x100W Class D Dual Channel Audio Stereo Digital Power Amplifier Board DC 12-30V TDA7498

Description: TDA7498 is a 100 w 100 w class D audio amplifier. The IC chip adopts the single power supply, mainly used in home theater and active speakers. And naked cooling pad up TDA7498 adopted EPU hyper-threading encapsulation. Features: Output power:100w 100w (VCC 32V,RL=4ohm,THD=10% Wide:14-30v signal power supply Level 4 gain optional:(21.6dB,27.6dB,31.1dB,33.1dB) Using differential input to reduce common-mode noise significantly Has the pattern of the fault and silent mode With intelligent protection function Have overheating protection function Specifications: The input voltage: DC14-32 v Output power:100W*2 Output resistance:4-8ohm Line type:D types Chip:TDA7498 Harmonic distortion:Po=1W/0.05% Frequency response range:18-100KHZ Switching frequency:360KHz Signal to noise ratio:110db Product size:about(L*W)：9.4*6.2cm/3.7*2.44inch No Retail Packages Quantity: 1Pc Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes: 1 x TDA7498 Amplifier Board
