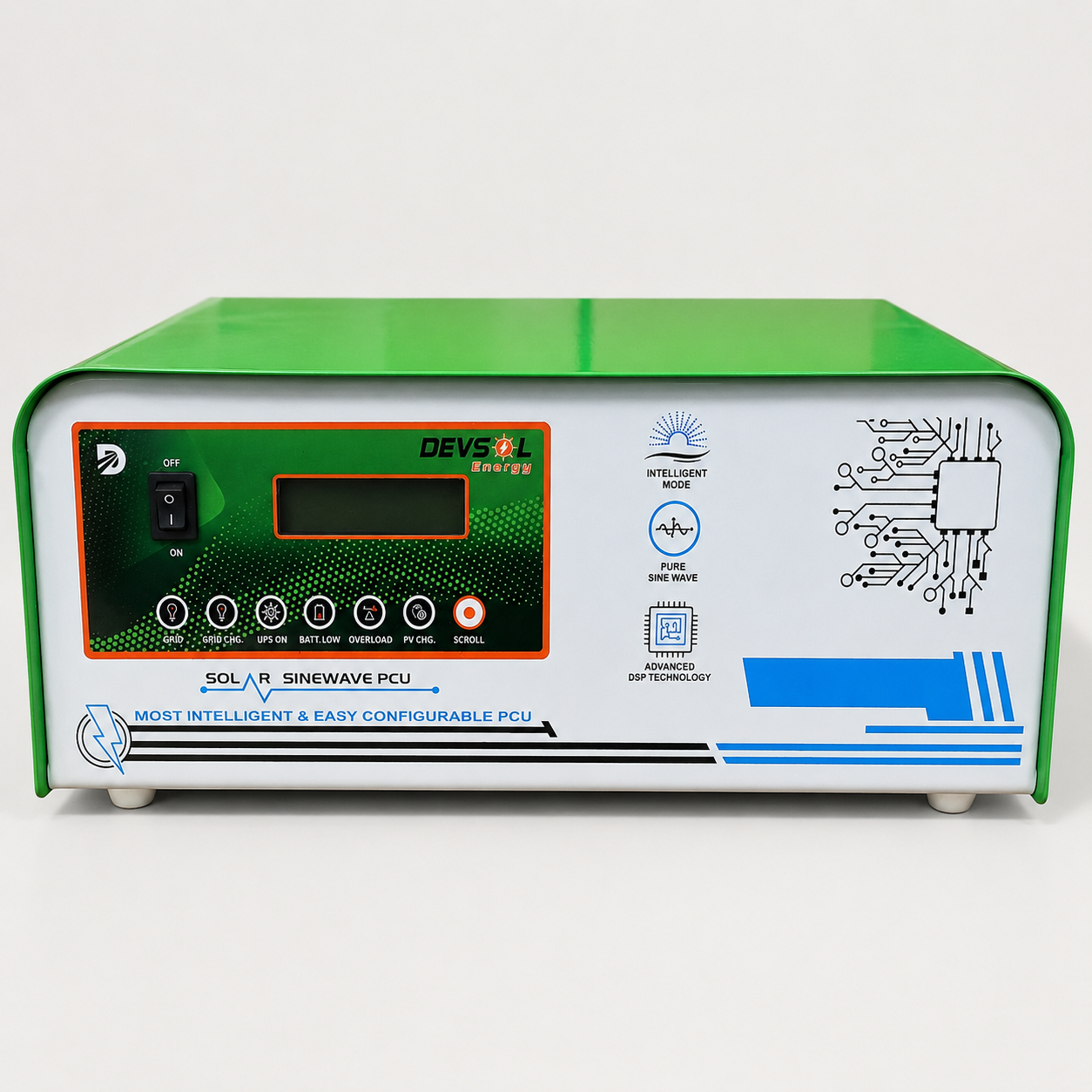

1kva 12v Mppt Pcu

Description Solar Off-Grid MPPT PCU consists of an MPPT Solar Charge Controller, Offline Inverter, and  Grid Charger all in an integrated from. The OFF-Grid Solar PCU is designed to maximize to use of Solar Power. When the batteries are charged from Solar, the smart PCU disconnects Grid/Mains/DG and let the Inverter/Load run on solar. It Generates maximum form Solar, also as per the user preferences it has three modes: Smart Mode (PCU gives priority to solar, second priority to the grid and third priority to the batteries in smart mode). Recommended in semi -urban Area, where power cut is between 2-3 hours PCU Mode (PCU gives priority to solar, second priority to the batteries and third priority to the grid in PCU mode). Recommended in urban Area, where power cut is less than 2 hours. Hybrid Mode(In this mode CPU works well with solar as well as batteries. Grid Charging only takes place when solar power is not sufficient to charge the batteries). Recommended in rural area, where power cut is more than 3 hours. 1KVA 12V MPPT PCU Technical Specification: Solar MPPT PCU Parameters Units Rating Operating DC Voltage Volts 12 SPV Open Circuit Voltage Range(Min-Max) Volts 18-45 Max SPV Power KW 1 Compatible SPV Panels 36/60/72 Cell Switching Elements 1GBT modules Controller DSP Efficiency >95% Battery Charging Stages 5(Softstart,Boost,Absorbtion,Float,Equalise) Low Cut off Volts 10.5/Battery /-2% Low Cut off Recovery Volts 11.5/Battery /-2% Low Buzzer Volts 10.7/Battery /-2% High Cut off Volts 15.5/Battery /-2% Boost Charging Volts by SPV(TUB) Volts 15.0/Battery /-2% Boost Charging Volts by Grid(TUB) Volts 14.5/Battery /-2% Charging Current by Grid Amps 10A /-2% No. Load Battery Current % 0.02 [email protected] Volts 230 /-2% Overload Watts 800W Output Low Retry – 1 Time Output Short Circuit – 1 Time No.of Phase – 1 Phase-3Wine P,N,E Display Alphanumeric 16×2 LCD Switching Element – MOSFET Frequency Hz 50 /-2% Overload retry – 3 Times Operating Temp C 0-50 Operating Humidity % 95% Protection Class – IP20
