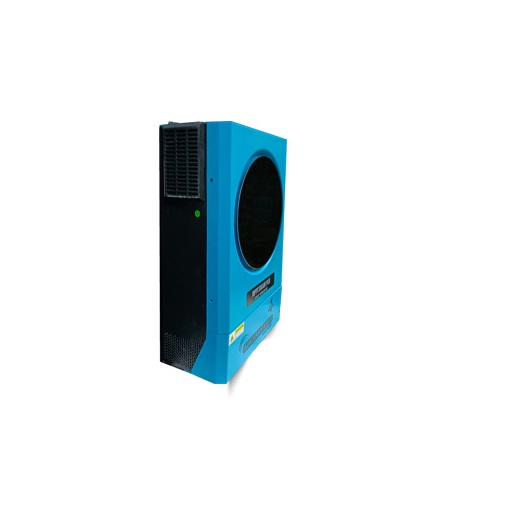

Nexus Inno 8G 5.8kW-48V OFF-Grid Solar Inverter

Nexus Solar Energy MPPT 5.8kW-48V Solar Off-Grid Inverter is a new generation, future ready inverter with a creative design and a big 4.3-inch LCD display with RGB LED ring and touch buttons. This robust solar inverter offers 40 customizable settings, load sharing option between solar & grid or solar & battery and supports variety of batteries including lead acid, lithium ion & LiFePO4 batteries. This model also comes with wide MPPT range with up to 6kW PV output and comes with inbuilt solar generation kwh meter. Features Pure Sine Wave solar inverter with up-to 93% peak efficiency 4.3” large coloured LCD Display with touch buttons & customizable LED Ring with RGB light Built in Wi-Fi monitoring via mobile app Compatible with Lead Acid, Lithium-Ion and LiFePO4 Batteries Communication RS485 port for BMS (Battery Management System) Setting Timer available for load priority & battery charging priority Inbuilt kWH Meter Can be used without batteries Connect up-to 9 inverters in parallel in single phase & three phase Basic System Architecture The following illustration shows basic application for this unit. It also required the following devices to have a complete running system: Generator or Utility mains. PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power various appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioners. Product Overview RGB LED ring (refer to LCD Setting section for the details) LCD display Function buttons PV connectors AC input connectors AC output connectors (Load connection) Battery connectors Current sharing port Parallel communication port Circuit breaker Power switch Dry contact USB port as USB communication port and USB function port RS-232 communication port BMS communication port: CAN, RS-485 Nexus Inno 8G  5.8kW-48V OFF-Grid  Solar Inverter Model INNO 8G 5.8KW Rated Power 5600 VA / 5600 W Parallel Capability Yes, up to 9 units Voltage 230 VAC Selectable Voltage Range 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode) Frequency Range50 Hz/60 Hz (Auto sensing) 50 Hz/60 Hz (Auto sensing) AC Voltage Regulation (Batt. Mode) 230 VAC ± 5% Surge Capacity 11200 VA for 5 secs Efficiency (Peak) 93% Transfer Time 10 ms (For Personal Computers); 20 ms (For Appliances) Waveform Pure Sine Wave No Load Power Consumption < 50 W Floating Charge Voltage 54 VDC Overcharge Protection 66VDC Maximum Solar Charging Current 120A Maximum AC Charging Current 120A Maximum PV Array Power 6000W Solar Charger Type MPPT MPPT Range 120 ~ 430VDC Maximum PV Array Open Circuit Voltage 450 VDC Maximum PV Input Current 27 A Dimension, D x W x H (mm) 140 x 295 x 468 Net Weight (kgs) 15 Communication Interface RS232/Dry-Contact/WiFi Humidity 5% to 95% Relative Humidity(Non-condensing) Operating Temperature -10°C – 50°C Storage Temperature -15°C – 60°C
