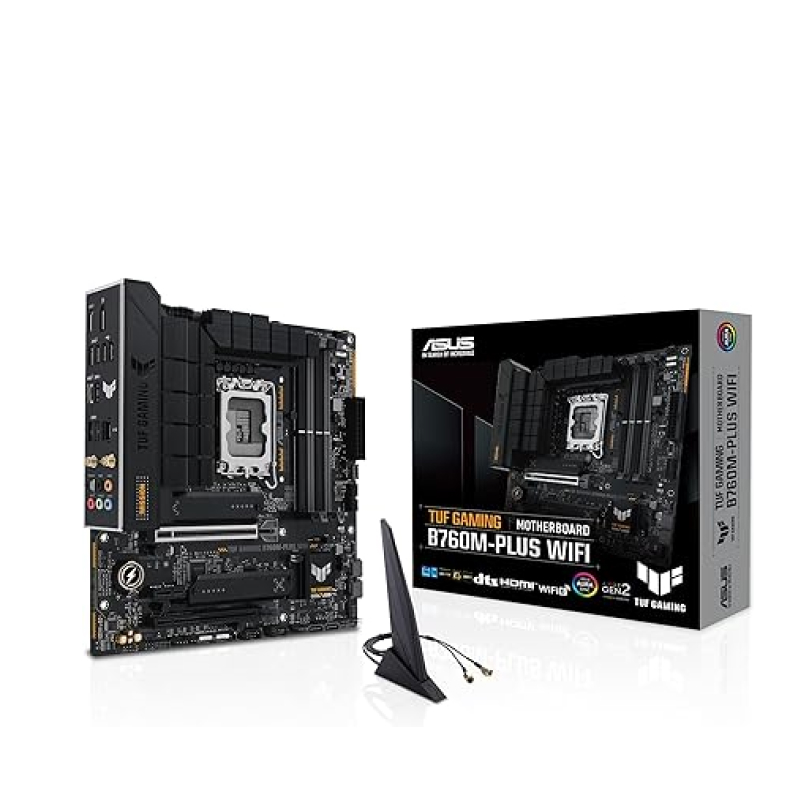

ASUS TUF GAMING B760M-PLUS WIFI B760 LGA1700 Max128GB DDR5 mATX Retail

Description TUF GAMING B760M-PLUS WIFI 12(50A) 1(60A) 1 power stages with enlarged VRM heatsinks PCIe® 5.0 for graphics cards DDR5 memory module support USB 3.2 Gen 2×2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header 2.5 Gb Ethernet WiFi 6 Two-Way AI Noise Cancelation SPEC OVERVIEW HDMI DisplayPort™ 2 x USB 3.2 Gen 2 2 x USB 2.0 1 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2×2 Type-C® 2 x USB 3.2 Gen 1 Realtek 2.5G Ethernet Wi-Fi 6 Optical S/PDIF out port 5 x Audio jacks 1 x PCIe® 5.0 x16 @CPUASUS SafeSlot Core 1 x PCIe® 4.0 x16 (max. @x4) @PCH1 x PCIe® 4.0 x1 Realtek® 7.1-ch Audio CODEC Exclusive DTS Audio Processing Audio Shielding Premium audio capacitors Dedicated audio PCB layers ProCool Connectors 3 x Addressable Gen 2 RGB headers1 x Aura RGB Header 12 1 DrMos Power Stages DDR5ASUS Optimem II Intel® Socket LGA1700 for 13th GenIntel® Core™ Processors 1 x Front USB 3.2 Gen 2 Type-C® Port 1 x Front USB 3.2 Gen 1 2 x M.2 2280 PCIe® 4.0 x 4 4 x SATA 6 Gb/s ports B760 chipset 2 x Front USB 2.0 Headers 1 x Thunderbolt™ (USB4®) header INTELLIGENT CONTROL The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play. POWER SAVING All-Around Energy Efficiency The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans. Advanced Mode Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments, so you can dial in performance just the way you want. Search Function Quickly and easily find the option or setting you need. ASUS User Profile Transfer configuration settings between different BIOS versions, or share them with friends. EZ Mode Quick and Simple Setup EZ mode displays vital settings and stats, and it offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time. Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse. Aura On/Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LEF, for a subdued aesthetic touch. Armoury Crate The ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community. Hardware Information Fan Xpert 2 Two-Way AI Noise Cancelation Aura Sync Driver & Manual Download Account Management ROCK-SOLID PERFORMANCE With upgraded power delivery and comprehensive cooling options to fuel the latest Intel® CPUs, plus support for DDR5 memory and PCIe® 4.0 storage, the TUF GAMING B760M-PLUS WIFI is the perfect foundation for your next Intel® battle rig. POWER DESIGN 12(50A) 1(60A) 1 Power Stages 12(50A) 1(60A) 1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors. Six-Layer PCB Design The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom. 8 4 Pin ProCool Power Connectors Compared to most power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure. TUF Components TUF Chokes Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.     TUF Capacitors The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors. Controller  Digi VRM The integrated Digi voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.   Memory & Storage Unleash DDR5 With AEMP II ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance. Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance. • Results may vary according to the capabilities of your CPU and memory modules. The comparison chart is based on a test with an Intel i9-13900K processor and 2×16 GB SK Hynix DDR5-4800 non-ECC UDIMMs, model HMCG78MEBUA081N • Please ensure all memory modules are from a single validated kit. Do not combine DIMMs from multiple kits—even if they are the same make and model. Mixing and matching DIMMs can result in failure to boot, and compatibility cannot be guaranteed. • Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with your retailer to get the correct memory modules. PCIe® 4.0 Support The two PCIe 4.0 M.2 slots support up to two 2280 devices and the data-transfer speeds are up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives. Bandwidth (Gbps) *Actual transmission speed will be lower than theoretical maximum speed. COOLING Digi VRM Cooler By Design 1. Enlarged VRM Heatsink The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation. 2. Optimized M.2 Heatsink Design All M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability. Comprehensive Fan Controls TUF GAMING B760M motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 2 utility in Armoury Crate or via the award-winning ASUS UEFI BIOS. Multiple Temperature Source Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2 or via the UEFI. Pump Header An integrated AIO management system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups. Smart Fan Protection A dedicated integrated circuit protects each fan header from excess heat and electrical currents. 4-Pin PWM/DC Fan All onboard chassis fan headers support auto-detection of PWM or DC fans. CONNECTIVITY The TUF-GAMING B760M-PLUS WIFI reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C® connections, and Thunderbolt 4 expands compatibility and bandwidth even further. USB 3.2 Gen 2×2 Type-C® Extensive USB support ensures connections to a wide array of external devices. This TUF GAMING motherboard includes a USB 3.2 Gen 2×2 Type-C® port on the rear I/O panel that delivers transfer speeds of up to 20 Gbps. PCIe 5.0 PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of the PCIe bus. Front USB3.2 Gen 2 Type-C® A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 2 Type-C® connector that provides data transfer speeds of up to 10 Gbps. Thunderbolt™(USB4®) Support The TUF GAMING B760M series features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this motherboard can also enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connection and supports up to an 8K-resolution display. It can also provide up to 100 watts of power to fast-charge devices. * ASUS ThunderboltEX 4 add-on card is sold separately. EASY PC DIY The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2 , hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs. TUF GAMING ALLIANCE Build With Confidence TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger. TUF PROTECTION SafeSlot Core & SafeDIMM SafeSlot Core is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot―all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence. ESD Guards ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to /- 10 kV of air discharge and /- 6 kV of contact discharge — greatly surpassing the respective industry standards of /- 6 kV and /- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes. USB Connectors Additional on-circuit ESD transient-voltage-suppression TUF LANGuard TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity. Stainless Steel Back I/O Panel TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing. EASY CONFIGURATION ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to /- 10 kV of air discharge and /- 6 kV of contact discharge — greatly surpassing the respective industry standards of /- 6 kV and /- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes. M.2 Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws. Removable Captive Screws Specialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal. Q-LED The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup. IMMERSIVE GAMING TUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere. NETWORKING WiFi 6 The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps*. Perhaps more importantly for power users, it’s optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. * Actual speed depends on environmental conditions. MyASUS MyASUS offers a variety of support features to help you contact customer service, troubleshoot issues and optimize product performance. You can also use MyASUS to enable the Wi-Fi SmartConnect function to automatically connect to the wireless router with the best signal. 2.5 Gb Ethernet 2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers. AI NOISE-CANCELATION Two-Way AI Noise-Cancelation This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio, while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled, so you can hear and be heard with excellent clarity while gaming or during calls. *An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset. AUDIO Realtek 7.1 Surround Sound The unique audio codec designed in close collaboration with Realtek for TUF GAMING B760M motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality. Better Audio Effects DTS® Audio Processing DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies, and music sound better. It also allows you to customize audio settings. LIGHTING Addressable Gen 2 RGB Header Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear. Tech Specs Model TUF GAMING B760M-PLUS WIFI CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM slots, Max. 192GB, DDR5 7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI™port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots     Intel® 14th& 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 14th &13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth     Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* Audio Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback ” Audio Features   – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers Back Panel I/O Ports     1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors     I/O Connectors  Fan and Cooling related   1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin 12V Power connector 1 x 4-pin 12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features     ASUS TUF PROTECTION – DIGI VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design   – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers Software Features     ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Fan Xpert 2 – Power Saving – Two-Way AI Noise Cancelation AI Suite 3 DIGI VRM – PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories WOL by PME, PXE Operating System Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x TUF Gaming sticker Documentation 1 x TUF Certification card 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
